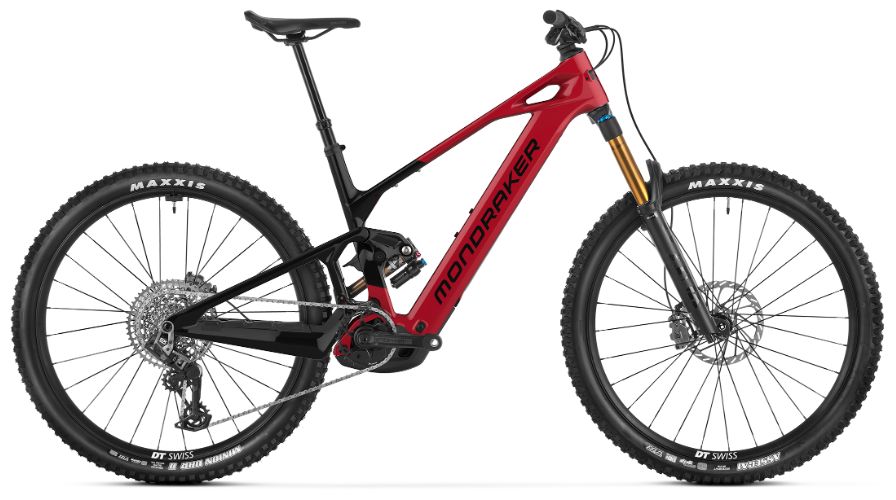

RAHMEN Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

GRÖßE S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

DÄMPFER Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

DÄMPFEREINSTELLUNGEN CS50 compression, RL70 rebound, 1,1 Bleed, Rezi B60, LML, MCU, 0.2 Volume Spacer

GABEL Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

STEUERSATZ Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

VORBAU Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

LENKER Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

GRIFFE Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

SATTELSTÜTZE Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

SATTEL Ergon SM-10

BREMSE VORN Sram Maven Bronze, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BREMSE HINTEN Sram Maven Bronze, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BREMSHEBEL Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

FELGEN DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.

SPEICHEN DT Swiss Straightpull spokes, DT Hybrid I, black

NABE VORN DT Swiss 370, Boost 15x110mm, IS 6 bolts

NABE HINTEN DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, XD freehub

REIFEN VORN Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

REIFEN HINTEN Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead

KURBELN E.13 Helix Core E*Spec Plus, All sizes: 155mm

KETTENBLÄTTER Sram Eagle 34T T-Type, direct mount, steel, CL55

KETTE Sram GX Eagle T-Type, 12s Flattop, Powerlock

SCHALTWERK Sram GX Eagle AXS, T-Type, 12s

SCHALTHEBEL Sram Eagle AXS Pod MMX, 12s

KASSETTE Sram XS-1275, 10-52T, T-Type, 12s

DISPLAY Kiox 400C / Bosch Mini Remote

MOTOR Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

BATTERIE Bosch Powertube 800Wh
